Product features
- Multiple detector and focal-length options
- Laser ranging
- Wi-Fi and app connectivity
- Hotspot tracking and burn protection
Obsidian Series Long-Tube Thermal Sight
A long-tube thermal sight family covering 25 / 35 / 50 mm focal lengths.
Obsidian Series offers 256 × 192, 384 × 288, and 640 × 512 detector options, covering 1200 to 2600 m detection and 1200 / 2200 m laser-ranging configurations.
- Detection up to 2600 m
- Laser ranging up to 2200 m
- IP67 and 1000G shock resistance
- At least 6 hours of runtime
Mission stageReconnaissance and Evidence
CapabilityWeapons Equipment
ScenarioTactical Strike
IndustrySpecial Tactics
Product systemThermal Imaging Sights
Applications
- Long-range aiming
- Night target search
- Range determination
Technical specifications
Values are preserved from the source product material. Missing fields are not inferred.
Detector resolution256 × 192 / 384 × 288 / 640 × 512
Focal length25 / 35 / 50 mm
Display resolution1920 × 1080
Detection range1200 / 1800 / 2600 m
Laser ranging1200 / 2200 m
Runtime≥ 6 h
Protection ratingIP67
Shock resistance1000G
Related products
Related through a shared mission stage, capability, or scenario.
WBC / 1500

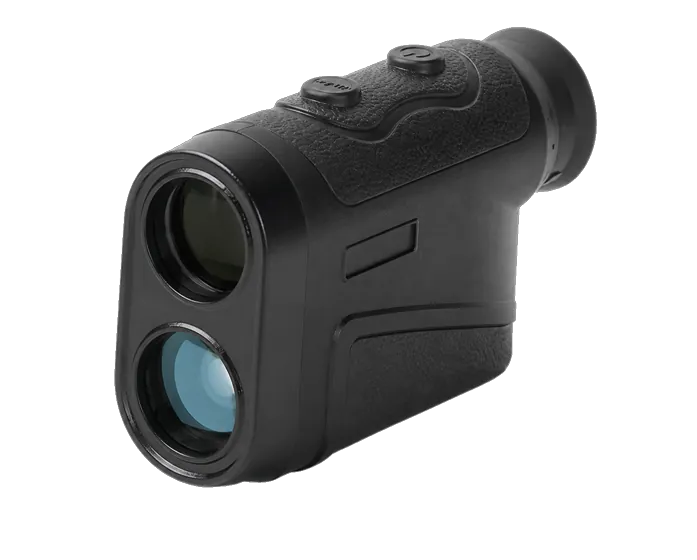

1500 Laser Rangefinder Monocular
An eye-safe laser rangefinder monocular combining 3.5-1500 m ranging, 5-300 km/h speed measurement, and 8× observation.
View full profile
WBC / AL-R225 / AL-K325

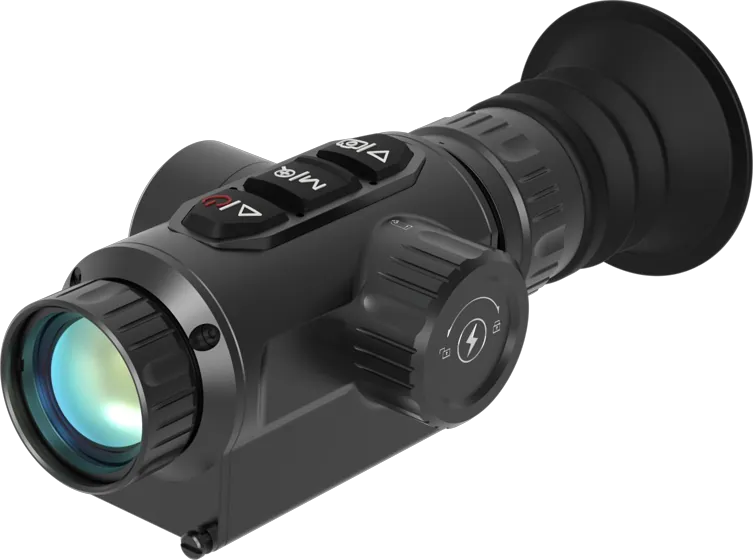

AL-R225 / AL-K325 Ares Lite Series 4-in-1 Thermal Imager
A lightweight 4-in-1 thermal platform that switches among headborne, sight, handheld, and clip-on roles.
View full profile
WBC / A325 / A625

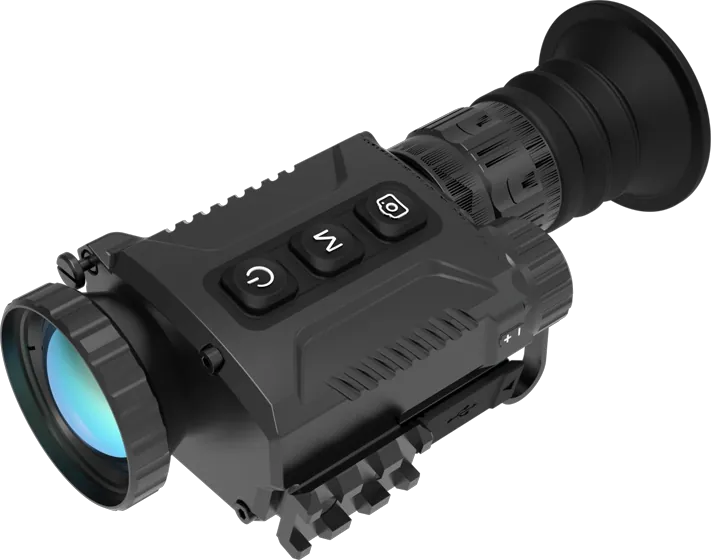

A325 / A625 Ares Series 4-in-1 Thermal Imager
